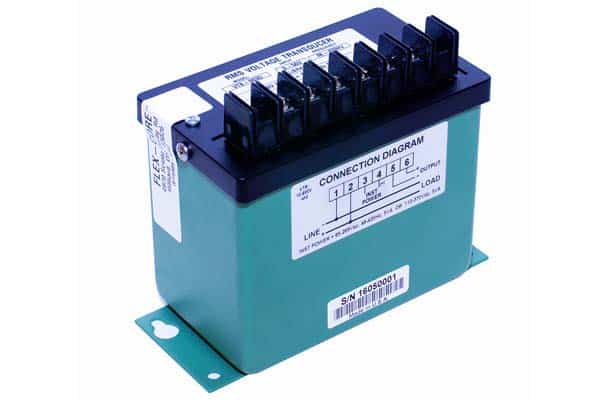

Model# VT7

DC or Variable Frequency Voltage Transducer

Download Datasheet

Download Product Catalog
  • Monitoring of substation or electric circuit performance.
  • Isolation and amplification of shunt output.
  • Accurate measurement of voltage that may contain dciand non-sinusoidal AC components.
  • VT7 Output is proportional to the input amplitude and frequency (ac in/ac out, dc in/dc out).
  • Better than 10 kilohertz bandwidth.
  • Input/output isolation of 2500V.
  • Highlighted models will be supplied with an externally mounted multiplier module.
  • 50,100,200 and 250mV models can be used for shunt isolation.
  • All units have universal power supply 85-265Vac, 48-420Hz or 110-370Vdc
  • Optional DC Instrument Power Available -12, -15, -24, -37, -48 (150mA)

Overview

Response Time up to 90%50Ī¼s
Loading Time (Ī©)See Datasheet
Temperature Effects-10Ā°C to +60Ā°C) Ā±1.0% Rdg
Weight1.5 Lbs

Accuracy

ClassĀ± 0.25% F.S.@ DC

Input

Volts0-50mV to 0-1000V
Frequency RangeDC-10kHz

Output

Standard+/-1mA, +/-5V, +/-10V, 4-20mA
Burden> 100K

Model# VT7-Voltage-transducers
