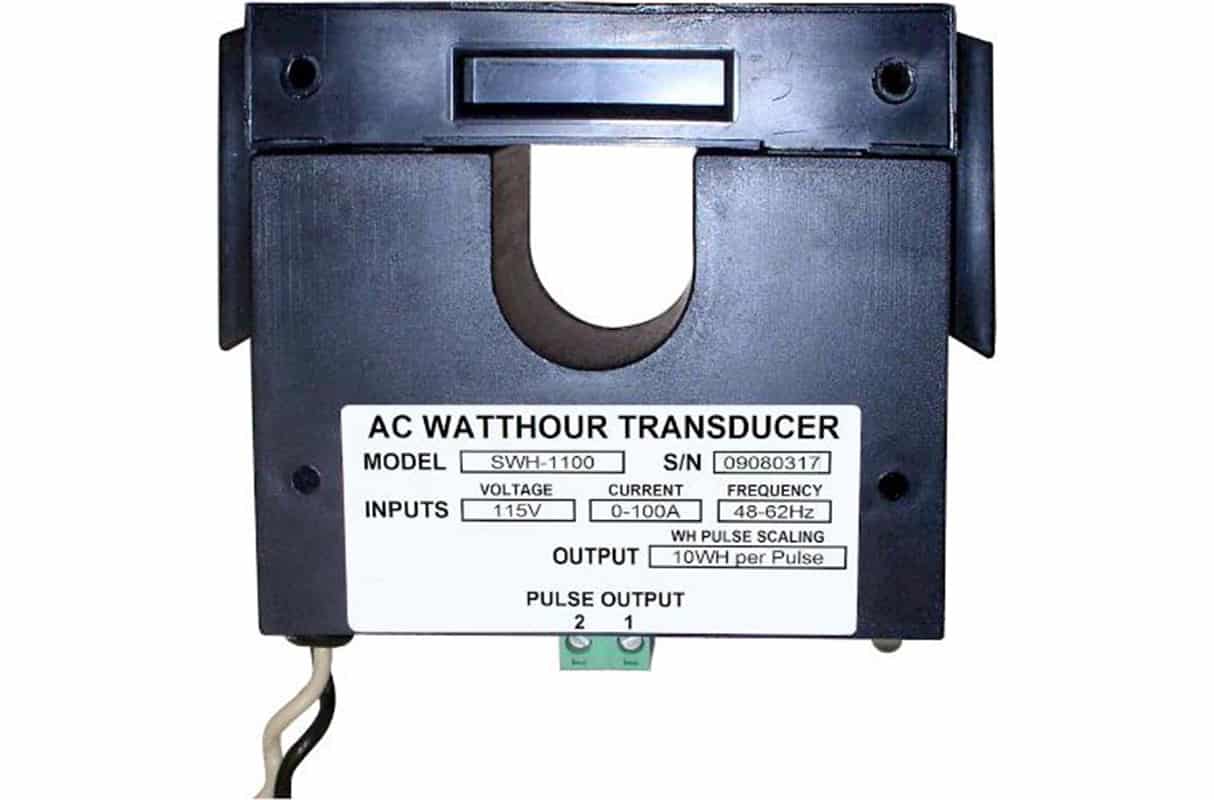

Model# SWH Watt Hour Meter with Integrated CT

Model# SWH

Download Datasheet

Download Product Catalog

Overload Voltage 120% of Nominal

Overload Current125% of F.S.

Temperature Effect(-20°C to +65°C) ±1.0% F.S.

Weight1.0 Lb.

Class±1.0% F.S.

Volts and Amps0-115V thru 0-277V/0-100A thru 0-400A

Frequency Range48 – 62Hz

Standard10kWh Pulse

Burden Voltage<0.2VA

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

10WH SECONDARY MODEL

Catalog Number	Input Ac Volts	Input Ac Current	Output Per Pulse	Burden	Frequency Range	Accuracy	Weight
SWH-1100	115V	0-100Amps	10WH	< 0.2VA	48-62Hz	±1.0% F.S.	1 Lbs
SWH-1200	115V	0-200Amps	10WH	< 0.2VA	48-62Hz	±1.0% F.S.	1 Lbs
SWH-1400	115V	0-400Amps	10WH	< 0.2VA	48-62Hz	±1.0% F.S.	1 Lbs
SWH-2100	208/230V	0-100Amps	10WH	< 0.2VA	48-62Hz	±1.0% F.S.	1 Lbs
SWH-2200	208/230V	0-200Amps	10WH	< 0.2VA	48-62Hz	±1.0% F.S.	1 Lbs
SWH-3100	277V	0-100Amps	10WH	< 0.2VA	48-62Hz	±1.0% F.S.	1 Lbs
SWH-3200	277V	0-200Amps	10WH	< 0.2VA	48-62Hz	±1.0% F.S.	1 Lbs
