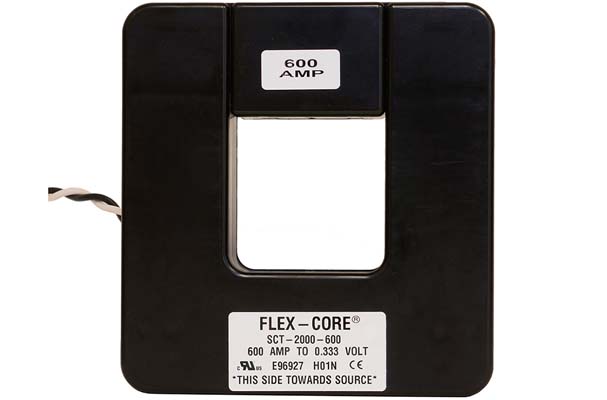

Model# SCT-2000
600V Class
AC Split-Core Current Transformer
The SCT-2000 series AC Split-Core Current Transformers “sense” AC current from 100 to 1500 Amps passing through the window. These split-core current transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The SCT series have the highest industry standards for both interleaving joints and the self-locking mechanism.
Overview
Phase Angle < 2 degrees measured at 50% rated current
Weight1.5 oz
Accuracy
±1%@ 10% to 130% of rated current
Input
Amps0-100A thru 0-1500A
Frequency50Hz to 400Hz
Output
Standard0..333V
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
