Model# RCS-1800
600V Class
AC Current Probe Current Transformer

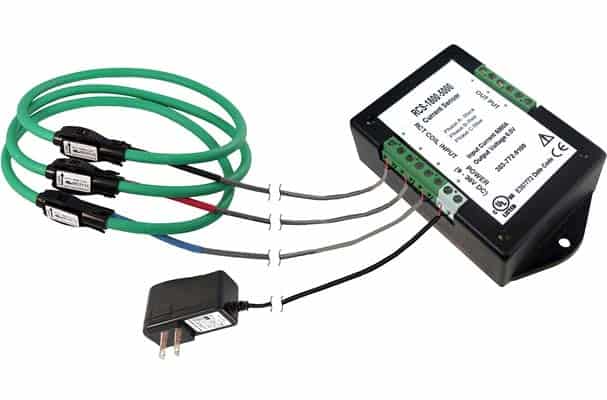

The RCS-1800 series is an AC current probe using the Rogowski principle to measure AC current rated from 250 to 5,000 Amps for single and three phase electrical applications. The coils open at the connector junction and can be installed on an existing cable or buss-bar easily in a matter of seconds. The RCS-1800 is designed for use with hand held multimeters, oscilloscopes, recorders, and data loggers.
Overview
Phase Angle < 0.5 degrees
Weight 2 Lbs
Accuracy
±1%@ 10% to 300% rated current
Input
Amps0-250A Thru 0-5000A
Output
StandardThree Phase 0.333V
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
