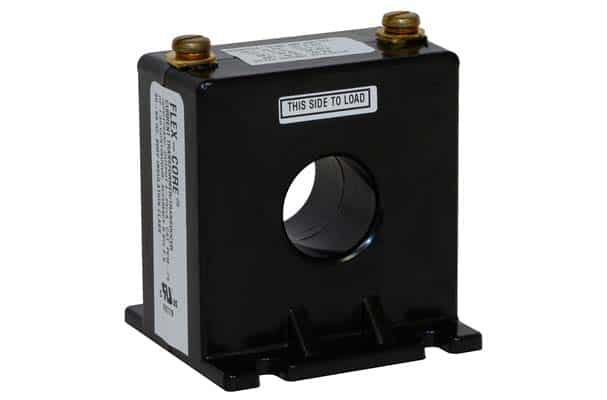

Model# PCM
AC Current Transducer/Transformer
The PCM series of AC current transducers provides a DC output proportional to the AC current input. The output is derived from the average absolute value of the input and calibrated as the RMS value of the sine wave.
- Ideal where space is a consideration.
- Transformer & Transducer are Housed in One Case.
- Terminals are Brass Screws No. 10-32 with one flat washer, lock washer, and regular nut.
- UL Recognized.
Overview
Output Ripple<Ā±1% F.S.
Response Time200ms
Output Loading0-600Ī©
Weight1.5 Lbs
Accuracy
ClassĀ±0.5% F.S.
Input
Amps0-5A to 0-200A
Frequency Range50-60Hz
Output
Standard4-20mAdc
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Current | Output Ripple | Response 90% | Output Loading | Accuracy | Frequency Range | Insulation | Weight |
|---|---|---|---|---|---|---|---|---|---|
| PCM - 5 | 0 to 5 Amps | 4-20mAdc | <1.0% F.S. | 200ms | 0-600Ī© | +/- 0.5% F.S. | 50-60Hz | 0.6kV | 1.5 Lbs |
| PCM - 10 | 0 to 10 Amps | 4-20mAdc | <1.0% F.S. | 200ms | 0-600Ī© | +/- 0.5% F.S. | 50-60Hz | 0.6kV | 1.5 Lbs |
| PCM - 20 | 0 to 20 Amps | 4-20mAdc | <1.0% F.S. | 200ms | 0-600Ī© | +/- 0.5% F.S. | 50-60Hz | 0.6kV | 1.5 Lbs |
| PCM - 30 | 0 to 30 Amps | 4-20mAdc | <1.0% F.S. | 200ms | 0-600Ī© | +/- 0.5% F.S. | 50-60Hz | 0.6kV | 1.5 Lbs |
| PCM - 50 | 0 to 50 Amps | 4-20mAdc | <1.0% F.S. | 200ms | 0-600Ī© | +/- 0.5% F.S. | 50-60Hz | 0.6kV | 1.5 Lbs |
| PCM - 75 | 0 to 75 Amps | 4-20mAdc | <1.0% F.S. | 200ms | 0-600Ī© | +/- 0.5% F.S. | 50-60Hz | 0.6kV | 1.5 Lbs |
| PCM - 100 | 0 to 100 Amps | 4-20mAdc | <1.0% F.S. | 200ms | 0-600Ī© | +/- 0.5% F.S. | 50-60Hz | 0.6kV | 1.5 Lbs |
| PCM - 150 | 0 to 150 Amps | 4-20mAdc | <1.0% F.S. | 200ms | 0-600Ī© | +/- 0.5% F.S. | 50-60Hz | 0.6kV | 1.5 Lbs |
| PCM - 200 | 0 to 200 Amps | 4-20mAdc | <1.0% F.S. | 200ms | 0-600Ī© | +/- 0.5% F.S. | 50-60Hz | 0.6kV | 1.5 Lbs |
