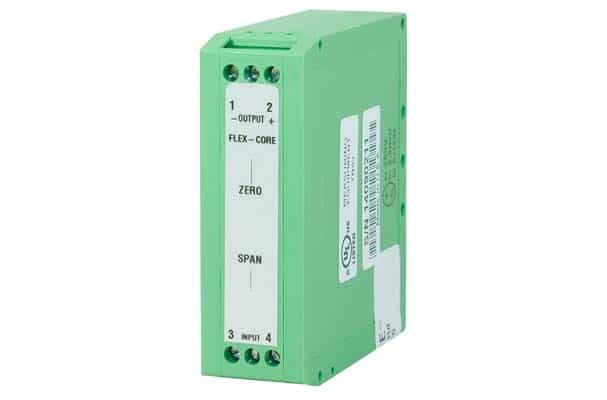

Model# MVT
AC Voltage Transducer
Transducer output is derived from the absolute value of the input and calibrated as the RMS value of a sine wave input.
- Ideal for use in enclosures with dimensional constraints.Designed for industrial environments.
- OEM measurement systems.
- Designed for use with potential transformers.
- Easily integrated into control systems.
- 1ā³ wide case can be mounted on Rail EN50035 (DIN 1) or Rail EN50022 (DIN2).
- Ruggedized Polyamide DIN mount case.
- Slim profile allows maximum use of available space.
- Field selectable analog outputs. (āAā Suffix)
- Recessed terminals provide increased safety.
*Models are self-powered from measured AC input line with DIP switch selectable 0-1mA, 0-5Vdc, or 0-10Vdc output.
**Denotes 4-20mA loop-powered unit, (15-35Vdc). All other units require 85-135 VAC instrument power.
Overview
Response Time (99%)400 ms
Loading Time (Ī©)4-20mA: 0-500 (24V Loop Power): 0-600
Output Ripple<1.0% F.S.
Temperature Effect(-20Ā°C to +65Ā°C): Ā±1.0%
Accuracy
Includes effects of linearity and setpoint (10% to 100% F.S.)Standard: Ā±0.25% F.S.
Input
Volts0-150V thru 0-600V
Frequency Range48 to 65Hz
Output
Standard0-1mAdc, 5V, 10V), or 4-20mAdc
Burden 150V Models1.0VA
Burden 300V & 600V Models2.0VA
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input | Dip SwitchSelectable Output | Power Type | XFRM Included | Output Ripple | Response Time at 99% | Burden | Frequency Range | Accuracy @ 60Hz | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| MVT-150A | 0 to 150 Volts | 1mA/5Vdc/10Vdc | Self-Powered | No | <1.0% F.S. | 400ms | 1.0VA | 48 to 65Hz | Ā±0.25% F.S. | 0.25 Lbs |
| MVT-300A | 0 to 300 Volts | 1mA/5Vdc/10Vdc | Self-Powered | No | <1.0% F.S. | 400ms | 2.0VA | 48 to 65Hz | Ā±0.25% F.S. | 0.25 Lbs |
| MVT-600A | 0 to 600 Volts | 1mA/5Vdc/10Vdc | Self-Powered | Yes | <1.0% F.S. | 400ms | 2.0VA | 48 to 65Hz | Ā±0.25% F.S. | 0.9 Lbs |
| Catalog Number | Input Amps | Output Current | Power Type | XFRM Included | Output Ripple | Response Time at 99% | Burden | Frequency Range | Accuracy @ 60Hz | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| MVT-150E | 0 to 150 Amps | 4-20mAdc | 85-155Vac 50/60Hz | No | <1.0% F.S. | 400ms | 1.0VA | 48 to 65Hz | Ā±0.25% F.S. | 0.25 Lbs |
| MVT-150E2 | 0 to 150 Amps | 4-20mAdc | 15-40VDC Loop-Powered | No | <1.0% F.S. | 400ms | 1.0VA | 48 to 65Hz | Ā±0.25% F.S. | 0.25 Lbs |
| MVT-300E | 0 to 300 Amps | 4-20mAdc | 85-155Vac 50/60Hz | No | <1.0% F.S. | 400ms | 2.0VA | 48 to 65Hz | Ā±0.25% F.S. | 0.25 Lbs |
| MVT-300E2 | 0 to 300 Amps | 4-20mAdc | 15-40VDC Loop-Powered | No | <1.0% F.S. | 400ms | 2.0VA | 48 to 65Hz | Ā±0.25% F.S. | 0.25 Lbs |
| MVT-600E | 0 to 600 Amps | 4-20mAdc | 85-155Vac 50/60Hz | Yes | <1.0% F.S. | 400ms | 2.0VA | 48 to 65Hz | Ā±0.25% F.S. | 0.9 Lbs |
| MVT-600E2 | 0 to 600 Amps | 4-20mAdc | 15-40VDC Loop-Powered | Yes | <1.0% F.S. | 400ms | 2.0VA | 48 to 65Hz | Ā±0.25% F.S. | 0.9 Lbs |
