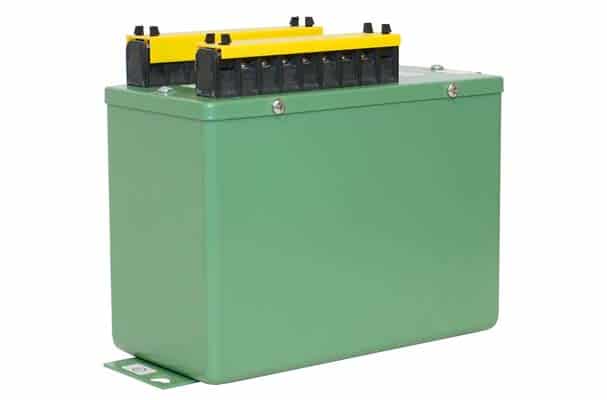

Model# GH Watt/Watt Hour Transducer

Model# GH

Watt/Watt Hour Transducer

Download Datasheet

Download Product Catalog

Integration into energy management systems, or a variety of sub-metering applications.
Measurement using direct-connection, potential and/or current transformers.
Accurate regardless of variations in voltage, current, power factor, or load.
Available with 1, 2, 2 1/2, or 3 element configurations. Bi-directional Watt and Watthour outputs available. (GH) Bi-directional Var and Var Hour outputs available. (VGH)
Accuracy maintained over wide temperature range, calibration traceable to NIST.

Overview

Response Time (99%)<400 milliseconds

Output Loading (Ω)See Tables

Output Ripple< 0.5% F.S.

Temperature Effect (-20°C to +60°C) +0.005%/°C

Accuracy

Class± 0.2% Rdg. or ±0.05% F.S.

Input

Current0-150V thru 0-600V/0-5A

Frequency Range58-62Hz or 48-52Hz

Output

Standard±1mA, ±10V, ±5V, 4-20mA or 4-12-20mA (kWh Pulse)

Burden Voltage 0.1VA/phase

Burden Current0.28VA/phase

Request Quote

Order Online

Need Assistance? Call: 614-889-6152

Not the right part? View all Transducers

Detailed Model Specifications

Click below to see available detailed specifications

While these tables work on mobile devices, they are best viewed on a desktop computer.

0-1MADC SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accuracy
GH-103B	150V	0-1A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103B-G	150V	0-1A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103B-H	150V	0-1A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103B-K	150V	0-1A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103B-T	150V	0-1A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103B-R	150V	0-1A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-104B	300V	0-1A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104B-G	300V	0-1A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104B-H	300V	0-1A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104B-K	300V	0-1A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104B-T	300V	0-1A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104B-R	300V	0-1A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-105B	600V	0-1A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105B-G	600V	0-1A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105B-H	600V	0-1A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105B-K	600V	0-1A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105B-T	600V	0-1A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105B-R	600V	0-1A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001B	150V	0-5A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001B-G	150V	0-5A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001B-H	150V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001B-K	150V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001B-T	150V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001B-R	150V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-022B	300V	0-5A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-G	300V	0-5A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-H	300V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-K	300V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-T	300V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-R	300V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-003B	600V	0-5A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003B-G	600V	0-5A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003B-H	600V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003B-K	600V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003B-T	600V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003B-R	600V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-010B	150V	0-10A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010B-G	150V	0-10A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010B-H	150V	0-10A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010B-K	150V	0-10A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010B-T	150V	0-10A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010B-R	150V	0-10A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-011B	300V	0-10A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011B-G	300V	0-10A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011B-H	300V	0-10A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011B-K	300V	0-10A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011B-T	300V	0-10A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011B-R	300V	0-10A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-012B	600V	0-10A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012B-G	600V	0-10A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012B-H	600V	0-10A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012B-K	600V	0-10A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012B-T	600V	0-10A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012B-R	600V	0-10A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-019B	150V	0-20A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019B-H	150V	0-20A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019B-G	150V	0-20A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019B-K	150V	0-20A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019B-T	150V	0-20A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019B-R	150V	0-20A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-020B	300V	0-20A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020B-H	300V	0-20A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020B-G	300V	0-20A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020B-K	300V	0-20A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020B-T	300V	0-20A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020B-R	300V	0-20A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-021B	600V	0-20A	0-1mAdc	Std. SPST Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021B-H	600V	0-20A	0-1mAdc	Std. SPST Relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021B-G	600V	0-20A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021B-K	600V	0-20A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021B-T	600V	0-20A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021B-R	600V	0-20A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.

10VDC SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accuracy
GH-103D	150V	0-1A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103D-G	150V	0-1A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103D-H	150V	0-1A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103D-K	150V	0-1A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103D-T	150V	0-1A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103D-R	150V	0-1A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-104D	300V	0-1A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104D-G	300V	0-1A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104D-H	300V	0-1A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104D-K	300V	0-1A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104D-T	300V	0-1A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104D-R	300V	0-1A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-105D	600V	0-1A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105D-G	600V	0-1A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105D-H	600V	0-1A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105D-K	600V	0-1A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105D-T	600V	0-1A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105D-R	600V	0-1A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001D	150V	0-5A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001D-G	150V	0-5A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001D-H	150V	0-5A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001D-K	150V	0-5A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001D-T	150V	0-5A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001D-R	150V	0-5A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-022D	300V	0-5A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-G	300V	0-5A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-H	300V	0-5A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-K	300V	0-5A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-T	300V	0-5A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-R	300V	0-5A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-003D	600V	0-5A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003D-G	600V	0-5A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003D-H	600V	0-5A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003D-K	600V	0-5A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003D-T	600V	0-5A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003D-R	600V	0-5A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-010D	150V	0-10A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010D-G	150V	0-10A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010D-H	150V	0-10A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010D-K	150V	0-10A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010D-T	150V	0-10A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010D-R	150V	0-10A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-011D	300V	0-10A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011D-G	300V	0-10A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011D-H	300V	0-10A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011D-K	300V	0-10A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011D-T	300V	0-10A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011D-R	300V	0-10A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-012D	600V	0-10A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012D-G	600V	0-10A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012D-H	600V	0-10A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012D-K	600V	0-10A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012D-T	600V	0-10A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012D-R	600V	0-10A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-019D	150V	0-20A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019D-G	150V	0-20A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019D-H	150V	0-20A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019D-K	150V	0-20A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019D-T	150V	0-20A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019D-R	150V	0-20A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-020D	300V	0-20A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020D-G	300V	0-20A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020D-H	300V	0-20A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020D-K	300V	0-20A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020D-T	300V	0-20A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020D-R	300V	0-20A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-021D	600V	0-20A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021D-G	600V	0-20A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021D-H	600V	0-20A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021D-K	600V	0-20A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021D-T	600V	0-20A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021D-R	600V	0-20A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.

5VDC SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accuracy
GH-103X5	150V	0-1A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103X5-G	150V	0-1A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103X5-H	150V	0-1A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103X5-K	150V	0-1A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103X5-T	150V	0-1A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103X5-R	150V	0-1A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-104X5	300V	0-1A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104X5-G	300V	0-1A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104X5-H	300V	0-1A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104X5-K	300V	0-1A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104X5-T	300V	0-1A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104X5-R	300V	0-1A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-105X5	600V	0-1A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105X5-G	600V	0-1A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105X5-H	600V	0-1A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105X5-K	600V	0-1A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105X5-T	600V	0-1A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105X5-R	600V	0-1A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001X5	150V	0-5A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001X5-G	150V	0-5A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001X5-H	150V	0-5A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001X5-K	150V	0-5A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001X5-T	150V	0-5A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001X5-R	150V	0-5A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-022X5	300V	0-5A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-G	300V	0-5A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-H	300V	0-5A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-K	300V	0-5A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-T	300V	0-5A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-R	300V	0-5A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-003X5	600V	0-5A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003X5-G	600V	0-5A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003X5-H	600V	0-5A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003X5-K	600V	0-5A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003X5-T	600V	0-5A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003X5-R	600V	0-5A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-010X5	150V	0-10A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010X5-G	150V	0-10A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010X5-H	150V	0-10A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010X5-K	150V	0-10A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010X5-T	150V	0-10A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010X5-R	150V	0-10A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-011X5	300V	0-10A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011X5-G	300V	0-10A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011X5-H	300V	0-10A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011X5-K	300V	0-10A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011X5-T	300V	0-10A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011X5-R	300V	0-10A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-012X5	600V	0-10A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012X5-G	600V	0-10A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012X5-H	600V	0-10A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012X5-K	600V	0-10A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012X5-T	600V	0-10A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012X5-R	600V	0-10A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-019X5	150V	0-20A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019X5-G	150V	0-20A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019X5-H	150V	0-20A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019X5-K	150V	0-20A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019X5-T	150V	0-20A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019X5-R	150V	0-20A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-020X5	300V	0-20A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020X5-G	300V	0-20A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020X5-H	300V	0-20A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020X5-K	300V	0-20A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020X5-T	300V	0-20A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020X5-R	300V	0-20A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-021X5	600V	0-20A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021X5-G	600V	0-20A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021X5-H	600V	0-20A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021X5-K	600V	0-20A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021X5-T	600V	0-20A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021X5-R	600V	0-20A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.

4-20MADC SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accuracy
GH-103E	150V	0-1A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103E-G	150V	0-1A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103E-H	150V	0-1A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103E-K	150V	0-1A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103E-T	150V	0-1A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103E-R	150V	0-1A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-104E	300V	0-1A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104E-G	300V	0-1A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104E-H	300V	0-1A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104E-K	300V	0-1A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104E-T	300V	0-1A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104E-R	300V	0-1A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-105E	600V	0-1A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105E-G	600V	0-1A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105E-H	600V	0-1A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105E-K	600V	0-1A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105E-T	600V	0-1A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105E-R	600V	0-1A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001E	150V	0-5A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001E-G	150V	0-5A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001E-H	150V	0-5A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001E-K	150V	0-5A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001E-T	150V	0-5A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001E-R	150V	0-5A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-022E	300V	0-5A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-G	300V	0-5A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-H	300V	0-5A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-K	300V	0-5A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-T	300V	0-5A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-R	300V	0-5A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-003E	600V	0-5A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003E-G	600V	0-5A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003E-H	600V	0-5A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003E-K	600V	0-5A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003E-T	600V	0-5A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003E-R	600V	0-5A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-010E	150V	0-10A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010E-G	150V	0-10A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010E-H	150V	0-10A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010E-K	150V	0-10A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010E-T	150V	0-10A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010E-R	150V	0-10A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-011E	300V	0-10A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011E-G	300V	0-10A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011E-H	300V	0-10A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011E-K	300V	0-10A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011E-T	300V	0-10A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011E-R	300V	0-10A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-012E	600V	0-10A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012E-G	600V	0-10A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012E-H	600V	0-10A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012E-K	600V	0-10A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012E-T	600V	0-10A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012E-R	600V	0-10A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-019E	150V	0-20A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019E-G	150V	0-20A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019E-H	150V	0-20A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019E-K	150V	0-20A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019E-T	150V	0-20A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019E-R	150V	0-20A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-020E	300V	0-20A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020E-G	300V	0-20A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020E-H	300V	0-20A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020E-K	300V	0-20A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020E-T	300V	0-20A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020E-R	300V	0-20A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-021E	600V	0-20A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021E-G	600V	0-20A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021E-H	600V	0-20A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021E-K	600V	0-20A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021E-T	600V	0-20A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021E-R	600V	0-20A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.

4-12-20MADC SECONDARY MODELS - SINGLE PHASE TWO WIRE (ONE ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accuracy
GH-103EM	150V	0-1A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103EM-G	150V	0-1A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103EM-H	150V	0-1A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103EM-K	150V	0-1A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103EM-T	150V	0-1A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-103EM-R	150V	0-1A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	100	100	±0.2% Rdg…. ±0.05% F.S.
GH-104EM	300V	0-1A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104EM-G	300V	0-1A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104EM-H	300V	0-1A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104EM-K	300V	0-1A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104EM-T	300V	0-1A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-104EM-R	300V	0-1A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-105EM	600V	0-1A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105EM-G	600V	0-1A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105EM-H	600V	0-1A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105EM-K	600V	0-1A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105EM-T	600V	0-1A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-105EM-R	600V	0-1A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001EM	150V	0-5A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001EM-G	150V	0-5A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001EM-H	150V	0-5A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001EM-K	150V	0-5A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-001EM-T	150V	0-5A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-R	150V	0-5A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	500	500	±0.2% Rdg…. ±0.05% F.S.
GH-022EM	300V	0-5A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-G	300V	0-5A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-H	300V	0-5A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-K	300V	0-5A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-T	300V	0-5A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-R	300V	0-5A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-003EM	600V	0-5A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003EM-G	600V	0-5A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003EM-H	600V	0-5A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003EM-K	600V	0-5A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003EM-T	600V	0-5A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-003EM-R	600V	0-5A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-010EM	150V	0-10A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010EM-G	150V	0-10A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010EM-H	150V	0-10A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010EM-K	150V	0-10A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010EM-T	150V	0-10A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-010EM-R	150V	0-10A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-011EM	300V	0-10A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011EM-G	300V	0-10A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011EM-H	300V	0-10A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011EM-K	300V	0-10A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011EM-T	300V	0-10A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-011EM-R	300V	0-10A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-012EM	600V	0-10A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012EM-G	600V	0-10A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012EM-H	600V	0-10A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012EM-K	600V	0-10A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012EM-T	600V	0-10A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-012EM-R	600V	0-10A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-019EM	150V	0-20A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019EM-G	150V	0-20A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019EM-H	150V	0-20A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019EM-K	150V	0-20A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019EM-T	150V	0-20A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-019EM-R	150V	0-20A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-020EM	300V	0-20A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020EM-G	300V	0-20A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020EM-H	300V	0-20A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020EM-K	300V	0-20A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-020EM-T	300V	0-20A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-021EM-R	300V	0-20A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-021EM	600V	0-20A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021EM-G	600V	0-20A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021EM-H	600V	0-20A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021EM-K	600V	0-20A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021EM-T	600V	0-20A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-021EM-R	600V	0-20A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.

0-1MADC SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accurac
GH-120B	150V	0-1A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120B-G	150V	0-1A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120B-H	150V	0-1A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120B-K	150V	0-1A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120B-T	150V	0-1A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120B-R	150V	0-1A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-121B	300V	0-1A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121B-G	300V	0-1A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121B-H	300V	0-1A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121B-K	300V	0-1A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121B-T	300V	0-1A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121B-R	300V	0-1A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-122B	600V	0-1A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122B-G	600V	0-1A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122B-H	600V	0-1A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122B-K	600V	0-1A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122B-T	600V	0-1A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122B-R	600V	0-1A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-004B	150V	0-5A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004B-G	150V	0-5A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004B-H	150V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004B-K	150V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004B-T	150V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004B-R	150V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-005B	300V	0-5A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005B-G	300V	0-5A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005B-H	300V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005B-K	300V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005B-T	300V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005B-R	300V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-006B	600V	0-5A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006B-G	600V	0-5A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006B-H	600V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006B-K	600V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006B-T	600V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006B-R	600V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-013B	150V	0-10A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013B-G	150V	0-10A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013B-H	150V	0-10A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013B-K	150V	0-10A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013B-T	150V	0-10A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013B-R	150V	0-10A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-014B	300V	0-10A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014B-G	300V	0-10A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014B-H	300V	0-10A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014B-K	300V	0-10A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014B-T	300V	0-10A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014B-R	300V	0-10A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-015B	600V	0-10A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015B-G	600V	0-10A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015B-H	600V	0-10A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015B-K	600V	0-10A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015B-T	600V	0-10A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015B-R	600V	0-10A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-022B	150V	0-20A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-G	150V	0-20A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-H	150V	0-20A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-K	150V	0-20A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-T	150V	0-20A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022B-R	150V	0-20A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-023B	300V	0-20A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023B-G	300V	0-20A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023B-H	300V	0-20A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023B-K	300V	0-20A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023B-T	300V	0-20A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023B-R	300V	0-20A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-024B	600V	0-20A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024B-G	600V	0-20A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024B-H	600V	0-20A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024B-K	600V	0-20A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024B-T	600V	0-20A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024B-R	600V	0-20A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.

10VDC SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accurac
GH-120D	150V	0-1A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120D-G	150V	0-1A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120D-H	150V	0-1A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120D-K	150V	0-1A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120D-T	150V	0-1A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120D-R	150V	0-1A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-121D	300V	0-1A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121D-G	300V	0-1A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121D-H	300V	0-1A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121D-K	300V	0-1A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121D-T	300V	0-1A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121D-R	300V	0-1A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-122D	600V	0-1A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122D-G	600V	0-1A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122D-H	600V	0-1A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122D-K	600V	0-1A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122D-T	600V	0-1A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122D-R	600V	0-1A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-004D	150V	0-5A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004D-G	150V	0-5A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004D-H	150V	0-5A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004D-K	150V	0-5A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004D-T	150V	0-5A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004D-R	150V	0-5A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-005D	300V	0-5A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005D-G	300V	0-5A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005D-H	300V	0-5A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005D-K	300V	0-5A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005D-T	300V	0-5A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005D-R	300V	0-5A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-006D	600V	0-5A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006D-G	600V	0-5A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006D-H	600V	0-5A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006D-K	600V	0-5A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006D-T	600V	0-5A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006D-R	600V	0-5A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-013D	150V	0-10A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013D-G	150V	0-10A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013D-H	150V	0-10A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013D-K	150V	0-10A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013D-T	150V	0-10A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013D-R	150V	0-10A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-014D	300V	0-10A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014D-G	300V	0-10A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014D-H	300V	0-10A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014D-K	300V	0-10A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014D-T	300V	0-10A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014D-R	300V	0-10A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-015D	600V	0-10A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015D-G	600V	0-10A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015D-H	600V	0-10A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015D-K	600V	0-10A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015D-T	600V	0-10A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015D-R	600V	0-10A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-022D	150V	0-20A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-G	150V	0-20A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-H	150V	0-20A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-K	150V	0-20A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-T	150V	0-20A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022D-R	150V	0-20A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-023D	300V	0-20A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023D-G	300V	0-20A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023D-H	300V	0-20A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023D-K	300V	0-20A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023D-T	300V	0-20A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023D-R	300V	0-20A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-024D	600V	0-20A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024D-G	600V	0-20A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024D-H	600V	0-20A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024D-K	600V	0-20A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024D-T	600V	0-20A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024D-R	600V	0-20A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.

5VDC SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accurac
GH-120X5	150V	0-1A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120X5-G	150V	0-1A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120X5-H	150V	0-1A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120X5-K	150V	0-1A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120X5-T	150V	0-1A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120X5-R	150V	0-1A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-121X5	300V	0-1A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121X5-G	300V	0-1A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121X5-H	300V	0-1A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121X5-K	300V	0-1A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121X5-T	300V	0-1A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121X5-R	300V	0-1A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-122X5	600V	0-1A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122X5-G	600V	0-1A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122X5-H	600V	0-1A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122X5-K	600V	0-1A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122X5-T	600V	0-1A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122X5-R	600V	0-1A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-004X5	150V	0-5A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004X5-G	150V	0-5A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004X5-H	150V	0-5A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004X5-K	150V	0-5A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004X5-T	150V	0-5A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004X5-R	150V	0-5A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-005X5	300V	0-5A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005X5-G	300V	0-5A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005X5-H	300V	0-5A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005X5-K	300V	0-5A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005X5-T	300V	0-5A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005X5-R	300V	0-5A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-006X5	600V	0-5A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006X5-G	600V	0-5A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006X5-H	600V	0-5A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006X5-K	600V	0-5A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006X5-T	600V	0-5A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006X5-R	600V	0-5A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-013X5	150V	0-10A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013X5-G	150V	0-10A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013X5-H	150V	0-10A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013X5-K	150V	0-10A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013X5-T	150V	0-10A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013X5-R	150V	0-10A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-014X5	300V	0-10A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014X5-G	300V	0-10A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014X5-H	300V	0-10A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014X5-K	300V	0-10A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014X5-T	300V	0-10A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014X5-R	300V	0-10A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-015X5	600V	0-10A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015X5-G	600V	0-10A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015X5-H	600V	0-10A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015X5-K	600V	0-10A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015X5-T	600V	0-10A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015X5-R	600V	0-10A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5	150V	0-20A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-G	150V	0-20A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-H	150V	0-20A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-K	150V	0-20A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-T	150V	0-20A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022X5-R	150V	0-20A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-023X5	300V	0-20A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023X5-G	300V	0-20A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023X5-H	300V	0-20A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023X5-K	300V	0-20A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023X5-T	300V	0-20A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023X5-R	300V	0-20A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-024X5	600V	0-20A	0-5Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024X5-G	600V	0-20A	0-5Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024X5-H	600V	0-20A	0-5Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024X5-K	600V	0-20A	0-5Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024X5-T	600V	0-20A	0-5Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024X5-R	600V	0-20A	0-5Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.

4-20MADC SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accurac
GH-120E	150V	0-1A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120E-G	150V	0-1A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120E-H	150V	0-1A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120E-K	150V	0-1A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120E-T	150V	0-1A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120E-R	150V	0-1A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-121E	300V	0-1A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121E-G	300V	0-1A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121E-H	300V	0-1A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121E-K	300V	0-1A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121E-T	300V	0-1A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121E-R	300V	0-1A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-122E	600V	0-1A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122E-G	600V	0-1A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122E-H	600V	0-1A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122E-K	600V	0-1A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122E-T	600V	0-1A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122E-R	600V	0-1A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-004E	150V	0-5A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004E-G	150V	0-5A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004E-H	150V	0-5A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004E-K	150V	0-5A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004E-T	150V	0-5A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004E-R	150V	0-5A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-005E	300V	0-5A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005E-G	300V	0-5A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005E-H	300V	0-5A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005E-K	300V	0-5A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005E-T	300V	0-5A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005E-R	300V	0-5A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-006E	600V	0-5A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006E-G	600V	0-5A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006E-H	600V	0-5A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006E-K	600V	0-5A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006E-T	600V	0-5A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006E-R	600V	0-5A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-013E	150V	0-10A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013E-G	150V	0-10A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013E-H	150V	0-10A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013E-K	150V	0-10A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013E-T	150V	0-10A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013E-R	150V	0-10A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-014E	300V	0-10A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014E-G	300V	0-10A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014E-H	300V	0-10A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014E-K	300V	0-10A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014E-T	300V	0-10A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014E-R	300V	0-10A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-015E	600V	0-10A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015E-G	600V	0-10A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015E-H	600V	0-10A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015E-K	600V	0-10A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015E-T	600V	0-10A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015E-R	600V	0-10A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-022E	150V	0-20A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-G	150V	0-20A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-H	150V	0-20A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-K	150V	0-20A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-T	150V	0-20A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022E-R	150V	0-20A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-023E	300V	0-20A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023E-G	300V	0-20A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023E-H	300V	0-20A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023E-K	300V	0-20A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023E-T	300V	0-20A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023E-R	300V	0-20A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-024E	300V	0-20A	4-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024E-G	300V	0-20A	4-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024E-H	300V	0-20A	4-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024E-K	300V	0-20A	4-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024E-T	300V	0-20A	4-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024E-R	300V	0-20A	4-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.

4-12-20MADC SECONDARY MODELS - THREE PHASE THREE WIRE (TWO ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accurac
GH-120EM	150V	0-1A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120EM-G	150V	0-1A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120EM-H	150V	0-1A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120EM-K	150V	0-1A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120EM-T	150V	0-1A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-120EM-R	150V	0-1A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	200	200	±0.2% Rdg…. ±0.05% F.S.
GH-121EM	300V	0-1A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121EM-G	300V	0-1A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121EM-H	300V	0-1A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121EM-K	300V	0-1A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121EM-T	300V	0-1A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-121EM-R	300V	0-1A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	400	400	±0.2% Rdg…. ±0.05% F.S.
GH-122EM	600V	0-1A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122EM-G	600V	0-1A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122EM-H	600V	0-1A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122EM-K	600V	0-1A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122EM-T	600V	0-1A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-122EM-R	600V	0-1A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	800	800	±0.2% Rdg…. ±0.05% F.S.
GH-004EM	150V	0-5A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004EM-G	150V	0-5A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004EM-H	150V	0-5A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004EM-K	150V	0-5A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004EM-T	150V	0-5A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-004EM-R	150V	0-5A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1000	1000	±0.2% Rdg…. ±0.05% F.S.
GH-005EM	300V	0-5A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005EM-G	300V	0-5A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005EM-H	300V	0-5A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005EM-K	300V	0-5A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005EM-T	300V	0-5A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-005EM-R	300V	0-5A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-006EM	600V	0-5A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006EM-G	600V	0-5A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006EM-H	600V	0-5A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006EM-K	600V	0-5A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006EM-T	600V	0-5A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-006EM-R	600V	0-5A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-013EM	150V	0-10A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013EM-G	150V	0-10A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013EM-H	150V	0-10A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013EM-K	150V	0-10A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013EM-T	150V	0-10A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-013EM-R	150V	0-10A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	2000	2000	±0.2% Rdg…. ±0.05% F.S.
GH-014EM	300V	0-10A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014EM-G	300V	0-10A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014EM-H	300V	0-10A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014EM-K	300V	0-10A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014EM-T	300V	0-10A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-014EM-R	300V	0-10A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-015EM	600V	0-10A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015EM-G	600V	0-10A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015EM-H	600V	0-10A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015EM-K	600V	0-10A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015EM-T	600V	0-10A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-015EM-R	600V	0-10A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM	150V	0-20A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-G	150V	0-20A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-H	150V	0-20A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-K	150V	0-20A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-T	150V	0-20A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-022EM-R	150V	0-20A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	4000	4000	±0.2% Rdg…. ±0.05% F.S.
GH-023EM	300V	0-20A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023EM-G	300V	0-20A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023EM-H	300V	0-20A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023EM-K	300V	0-20A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023EM-T	300V	0-20A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-023EM-R	300V	0-20A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	8000	8000	±0.2% Rdg…. ±0.05% F.S.
GH-024EM	600V	0-20A	4-12-20mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024EM-G	600V	0-20A	4-12-20mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024EM-H	600V	0-20A	4-12-20mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024EM-K	600V	0-20A	4-12-20mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024EM-T	600V	0-20A	4-12-20mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.
GH-024EM-R	600V	0-20A	4-12-20mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	16000	16000	±0.2% Rdg…. ±0.05% F.S.

0-1MADC SECONDARY MODELS - THREE PHASE FOUR WIRE (THREE ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accuracy
GH-125B	150V	0-1A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125B-G	150V	0-1A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125B-H	150V	0-1A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125B-K	150V	0-1A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125B-T	150V	0-1A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125B-R	150V	0-1A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-126B	300V	0-1A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126B-G	300V	0-1A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126B-H	300V	0-1A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126B-K	300V	0-1A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126B-T	300V	0-1A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126B-R	300V	0-1A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-007B	150V	0-5A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007B-G	150V	0-5A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007B-H	150V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007B-K	150V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007B-T	150V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007B-R	150V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5B	150V	0-5A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5B-G	150V	0-5A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5B-H	150V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5B-K	150V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5B-T	150V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5B-R	150V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-008B	300V	0-5A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-008B-G	300V	0-5A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-008B-H	300V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-008B-K	300V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-008B-T	300V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-008B-R	300V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-8.5B	300V	0-5A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-8.5B-G	300V	0-5A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-8.5B-H	300V	0-5A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-8.5B-K	300V	0-5A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-8.5B-T	300V	0-5A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-8.5B-R	300V	0-5A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-016B	150V	0-10A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-016B-G	150V	0-10A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-016B-H	150V	0-10A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-016B-K	150V	0-10A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-016B-T	150V	0-10A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-016B-R	150V	0-10A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-017B	300V	0-10A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-017B-G	300V	0-10A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-017B-H	300V	0-10A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-017B-K	300V	0-10A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-017B-T	300V	0-10A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-017B-R	300V	0-10A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-025B	150V	0-20A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-025B-G	150V	0-20A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-025B-H	150V	0-20A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-025B-K	150V	0-20A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-025B-T	150V	0-20A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-025B-R	150V	0-20A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	6000	6000	±0.2% Rdg…. ±0.05% F.S.
GH-026B	300V	0-20A	0-1mAdc	Std. SPST relay	115Vac	<400ms	58-62Hz	12000	12000	±0.2% Rdg…. ±0.05% F.S.
GH-026B-G	300V	0-20A	0-1mAdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	12000	12000	±0.2% Rdg…. ±0.05% F.S.
GH-026B-H	300V	0-20A	0-1mAdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	12000	12000	±0.2% Rdg…. ±0.05% F.S.
GH-026B-K	300V	0-20A	0-1mAdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	12000	12000	±0.2% Rdg…. ±0.05% F.S.
GH-026B-T	300V	0-20A	0-1mAdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	12000	12000	±0.2% Rdg…. ±0.05% F.S.
GH-026B-R	300V	0-20A	0-1mAdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	12000	12000	±0.2% Rdg…. ±0.05% F.S.

10VDC SECONDARY MODELS - THREE PHASE FOUR WIRE (THREE ELEMENT) MODLES WITH INTERNAL SENSOR

Catalog Number	Input AC Volts	Input AC Amps	Analog Output	Watthour Output Option	Instrument Power	Response at 99%	Frequency Range	F.S. Watts	F.S. Counts Per Hr.	Accuracy
GH-125D	150V	0-1A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125D-G	150V	0-1A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125D-H	150V	0-1A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125D-K	150V	0-1A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125D-T	150V	0-1A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-125D-R	150V	0-1A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	300	300	±0.2% Rdg…. ±0.05% F.S.
GH-126D	300V	0-1A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126D-G	300V	0-1A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126D-H	300V	0-1A	0-10Vdc	SS SPDT Relay	Self Powered	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126D-K	300V	0-1A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126D-T	300V	0-1A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-126D-R	300V	0-1A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	600	600	±0.2% Rdg…. ±0.05% F.S.
GH-007D	150V	0-5A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007D-G	150V	0-5A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007D-H	150V	0-5A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007D-K	150V	0-5A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007D-T	150V	0-5A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-007D-R	150V	0-5A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5D	150V	0-5A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5D-G	150V	0-5A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5D-H	150V	0-5A	0-10Vdc	SS SPDT Relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5D-K	150V	0-5A	0-10Vdc	SS KYZ Relay	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5D-T	150V	0-5A	0-10Vdc	5Vdc TTL Pulse	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-7.5D-R	150V	0-5A	0-10Vdc	2nd Relay BiDir	115Vac	<400ms	58-62Hz	1500	1500	±0.2% Rdg…. ±0.05% F.S.
GH-008D	300V	0-5A	0-10Vdc	Std. SPST relay	115Vac	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.
GH-008D-G	300V	0-5A	0-10Vdc	Std. SPST relay	Self Powered	<400ms	58-62Hz	3000	3000	±0.2% Rdg…. ±0.05% F.S.

Resources

View engineering resources and whitepapers.

Div. Morlan & Associates, Inc.

Sales: +1-614-889-6152

GH Watt Transducers

Watt/Watt Hour Transducer

Overview

Accuracy

Input

Output

Need Assistance? Call: 614-889-6152

Detailed Model Specifications

Resources

Have a Question? Need assistance with a specific application?

Catalog

Latest News

Support

Contact FLEX-CORE®
