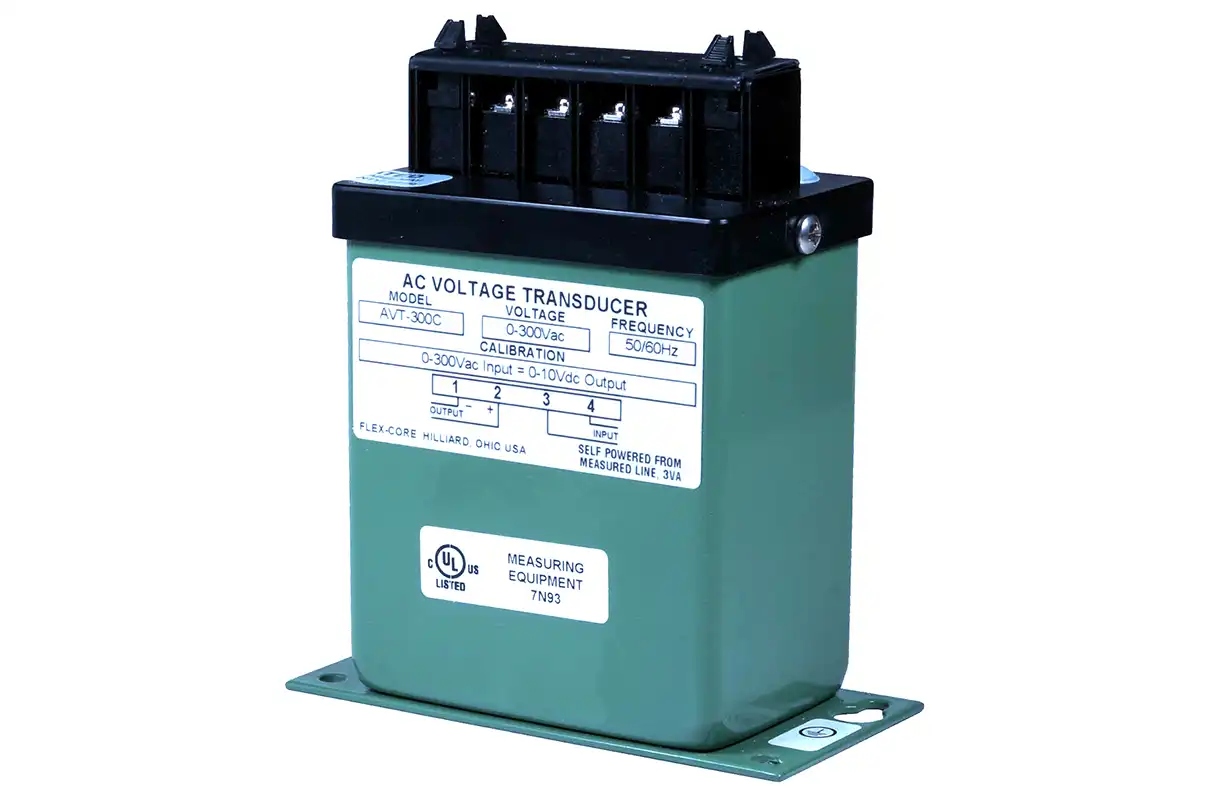

Model# AVT
AC Voltage Transducer
Transducer output is derived from the average absolute value of the input and calibrated as the RMS value of a sine wave input.
- Designed for use in applications where inexpensive voltage measurement is required.
- Line voltage monitoring.
- AVT150 can be used with higher voltage potential transformers.
- Accurate, reliable voltage measurement
- 2200Vac input/output isolation
- UL, CUL, CE Recognized
Overview
Response Time400ms
Loading Time (Ī©)See Datasheet
Output RippleLess than 1.0% F.S.
Temperature Range-20Ā°C to +60Ā°C
Weight0.8 Lbs to1.4 Lbs
Accuracy
(Includes effects of linearity 10-100% and setpoint.)Ā± 0.25% F.S. @60Hz
Input
Volts0-90V thru 0-600V
Frequency Range50/60Hz
Output
Burden 90V & 150V Models1VA
Burden 300V Models2VA
Burden 600V Models3VA
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Voltage | Output Current | Power Type | Output Ripple | Response Time | Burden | Frequency Range | Accuracy @ 60Hz | Weight |
|---|---|---|---|---|---|---|---|---|---|
| AVT-090A | 0 to 90V | 0-1mAdc | Self-Powered | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-150A | 0 to 150V | 0-1mAdc | Self-Powered | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-300A | 0 to 300V | 0-1mAdc | Self-Powered | <1.0% F.S. | 400ms | 2VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-600A | 0 to 600V | 0-1mAdc | Self-Powered | <1.0% F.S. | 400ms | 3VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| Catalog Number | Input Voltage | Output Current | Power Type | Output Ripple | Response Time | Burden | Frequency Range | Accuracy @ 60Hz | Weight |
|---|---|---|---|---|---|---|---|---|---|
| AVT-090CX5 | 0 to 90V | 0-5Vdc | Self-Powered | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-150CX5 | 0 to 150V | 0-5Vdc | Self-Powered | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-300CX5 | 0 to 300V | 0-5Vdc | Self-Powered | <1.0% F.S. | 400ms | 2VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-600CX5 | 0 to 600V | 0-5Vdc | Self-Powered | <1.0% F.S. | 400ms | 3VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| Catalog Number | Input Voltage | Output Current | Power Type | Output Ripple | Response Time | Burden | Frequency Range | Accuracy @ 60Hz | Weight |
|---|---|---|---|---|---|---|---|---|---|
| AVT-090C | 0 to 90V | 0-10Vdc | Self-Powered | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-150C | 0 to 150V | 0-10Vdc | Self-Powered | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-300C | 0 to 300V | 0-10Vdc | Self-Powered | <1.0% F.S. | 400ms | 2VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-600C | 0 to 600V | 0-10Vdc | Self-Powered | <1.0% F.S. | 400ms | 3VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| Catalog Number | Input Voltage | Output Current | Power Type | Output Ripple | Response Time | Burden | Frequency Range | Accuracy @ 60Hz | Weight |
|---|---|---|---|---|---|---|---|---|---|
| AVT-090E | 0 to 90V | 4-20mAdc | 115Vac 50/60Hz | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 1.4 Lbs |
| AVT-090E-22 | 0 to 90V | 4-20mAdc | 230Vac 50/60Hz | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 1.4 Lbs |
| AVT-090E2 | 0 to 90V | 4-20mAdc | 14-24Vdc Loop-Powered | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-150E | 0 to 150V | 4-20mAdc | 115Vac 50/60Hz | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 1.4 Lbs |
| AVT-150E-22 | 0 to 150V | 4-20mAdc | 230Vac 50/60Hz | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 1.4 Lbs |
| AVT-150E2 | 0 to 150V | 4-20mAdc | 14-24Vdc Loop-Powered | <1.0% F.S. | 400ms | 1VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-300E | 0 to 300V | 4-20mAdc | 115Vac 50/60Hz | <1.0% F.S. | 400ms | 2VA | 50/60 Hz | Ā±0.25% F.S. | 1.4 Lbs |
| AVT-300E-22 | 0 to 300V | 4-20mAdc | 230Vac 50/60Hz | <1.0% F.S. | 400ms | 2VA | 50/60 Hz | Ā±0.25% F.S. | 1.4 Lbs |
| AVT-300E2 | 0 to 300V | 4-20mAdc | 14-24Vdc Loop-Powered | <1.0% F.S. | 400ms | 2VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
| AVT-600E | 0 to 600V | 4-20mAdc | 115Vac 50/60Hz | <1.0% F.S. | 400ms | 3VA | 50/60 Hz | Ā±0.25% F.S. | 1.4 Lbs |
| AVT-600E-22 | 0 to 600V | 4-20mAdc | 230Vac 50/60Hz | <1.0% F.S. | 400ms | 3VA | 50/60 Hz | Ā±0.25% F.S. | 1.4 Lbs |
| AVT-600E2 | 0 to 600V | 4-20mAdc | 14-24Vdc Loop-Powered | <1.0% F.S. | 400ms | 3VA | 50/60 Hz | Ā±0.25% F.S. | 0.8 Lbs |
