Model# 7RL
600V Class

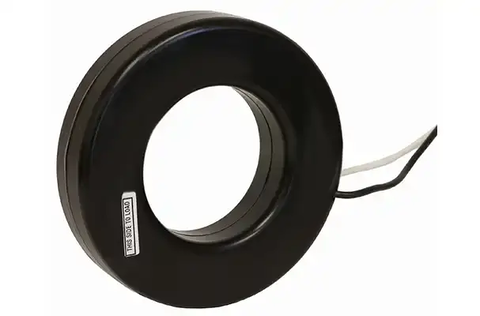

Solid-Core Current Transformer
- Flexible Leads UL1015, 105°C, CSA approved, 16 AWG, 24″
- UL Recognized
- Window I.D. – 2.50
- Use with Ammeters
Overview
Insulation Class0.6kV, 10kV BIL Full Wave
WeightApproximately 1.5 lbs
Accuracy
@ 60Hz +1%
Input
Amps0-300 thru 0-1600A
Frequency50-400Hz
Output
Standard5A
Burden VA at 60Hz12.5VA - 40VA
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Amps | Accuracy at 60Hz | Burden VA at 60Hz | Insulation Class | Weight |
|---|---|---|---|---|---|---|
| 7RL-301 | 300A | 5A | ±1% | 12.5 | 0.6kV | 1.5 Lbs |
| 7RL-401 | 400A | 5A | ±1% | 15.0 | 0.6kV | 1.5 Lbs |
| 7RL-501 | 500A | 5A | ±1% | 25.0 | 0.6kV | 1.5 Lbs |
| 7RL-601 | 600A | 5A | ±1% | 30.0 | 0.6kV | 1.5 Lbs |
| 7RL-751 | 750A | 5A | ±1% | 30.0 | 0.6kV | 1.5 Lbs |
| 7RL-801 | 800A | 5A | ±1% | 35.0 | 0.6kV | 1.5 Lbs |
| 7RL-102 | 1000A | 5A | ±1% | 35.0 | 0.6kV | 1.5 Lbs |
| 7RL-122 | 1200A | 5A | ±1% | 35.0 | 0.6kV | 1.5 Lbs |
| 7RL-152 | 1500A | 5A | ±1% | 40.0 | 0.6kV | 1.5 Lbs |
| 7RL-162 | 1600A | 5A | ±1% | 40.0 | 0.6kV | 1.5 Lbs |
