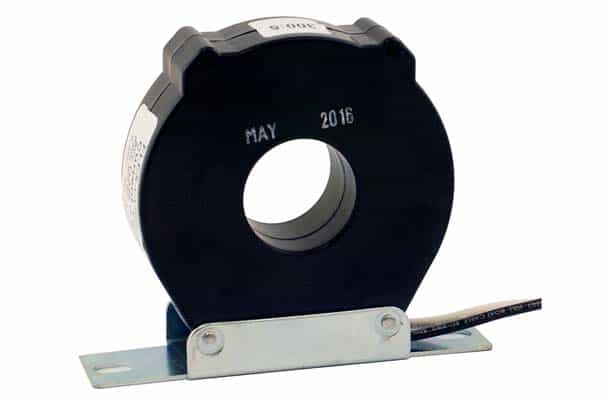

Model# 58RBL
600V
Solid-Core Current Transformers
- Leads UL1015 105°C CSA approved, 16 AWG, 24″
- Manufactured to meet requirements of UL1244 and revisions.
- For use with Watt and Watt/Watt Hour transducers or meters.
- Ideal for use with Ammeters and Current Transducers.
Overview
Insulation Class0.6kV, 10kV BIL Full Wave
Weight 1.22 Lbs to 1.41 Lbs
Accuracy
@ 60Hz3% or 1%
Input
Amps0-50 thru 0-300A
Frequency50-400Hz
Output
Standard5A
Burden VA at 60Hz1.5VA to 15.0VA
