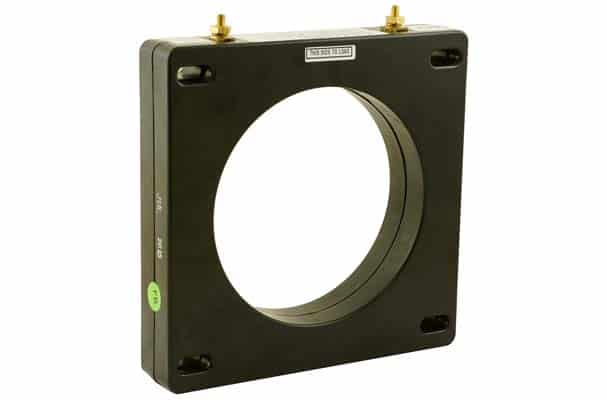

Model# 19SHT
600V
Metering Class Current Transformer
- Terminals: Brass Studs No. 8-32 UNC with one flat washer, lock washer and regular nut. (Model 19SHT)
- Optional Mounting Bracket: (19SHT): P/N 0221B00183
- Leads: 16 AWG, 24″ long, UL105°C (Model 19RL)
- Manufactured to meet the requirements of ANSI/IEEE C57.13
- Metering Applications
- UL Recognized
- Window I.D. – 4.25″
Overview
Insulation Class 0.6kV, 10kV BIL Full Wave
WeightApproximately 3 Lbs
Input
Amps0-500 thru 0-3000A
Frequency50-400Hz
Output
Standard5A
V.A. for ±1% Class15.0VA to 40.0VA
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Amps | V.A. for ±1% Class | B0.1 | B0.2 | B0.5 | B0.9 | Secondary Winding Resistance (Ω@75°C) | @30°C | @55°C | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19SHT-501 | 500A | 5A | 15.0 | 0.3 | 0.6 | 1.2 | -- | 0.087 | 2.0 | 1.5 | 3 Lbs |
| 19SHT-601 | 600A | 5A | 15.0 | 0.3 | 0.6 | 0.6 | 1.2 | 0.116 | 2.0 | 1.5 | 3 Lbs |
| 19SHT-801 | 800A | 5A | 30.0 | 0.3 | 0.3 | 0.6 | 0.6 | 0.155 | 1.5 | 1.33 | 3 Lbs |
| 19SHT-102 | 1000A | 5A | 30.0 | 0.3 | 0.3 | 0.6 | 0.6 | 0.242 | 1.33 | 1.0 | 3 Lbs |
| 19SHT-122 | 1200A | 5A | 40.0 | 0.3 | 0.3 | 0.3 | 0.6 | 0.291 | 1.33 | 1.0 | 3 Lbs |
| 19SHT-152 | 1500A | 5A | 15.0 | 0.3 | 0.3 | 0.6 | 1.2 | 0.200 | 1.5 | 1.0 | 3 Lbs |
| 19SHT-162 | 1600A | 5A | 15.0 | 0.3 | 0.3 | 0.3 | 0.6 | 0.213 | 1.5 | 1.0 | 3 Lbs |
| 19SHT-202 | 2000A | 5A | 20.0 | 0.3 | 0.3 | 0.3 | 0.6 | 0.266 | 1.33 | 1.0 | 3 Lbs |
| 19SHT-252 | 2500A | 5A | 20.0 | 0.3 | 0.3 | 0.3 | 0.3 | 0.333 | 1.0 | 0.8 | 3 Lbs |
| 19SHT-302 | 3000A | 5A | 25.0 | 0.3 | 0.3 | 0.3 | 0.3 | 0.399 | 1.0 | 0.8 | 3 Lbs |
