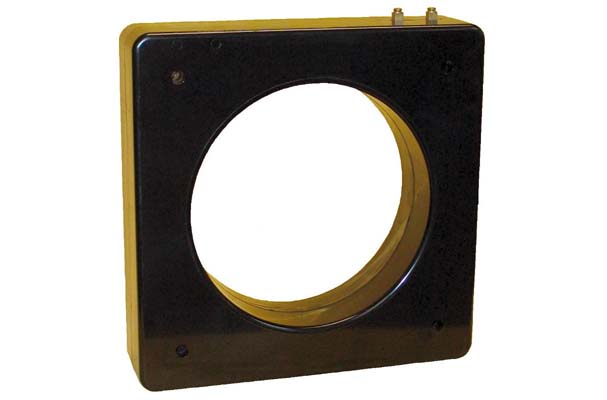

Model# 147
600V
Relay/Meter Current Transformer
- Terminals: Brass Screws No. 10-32 with one flat washer and lock washer.
- Relaying and Metering Applications
- Short time thermal rating factor: 75 X Rated Primary Current for 1 second
- Window I.D.-10.00″
- FOR INDOOR USE ONLY
Overview
Insulation Class0.6kV, 10kV BIL Full Wave
Rating Factor at @30°C1.0 to 2.0
Relay ClassC200 to C400
WeightApproximately 50 Lbs
Input
Amps0-2000 thru 0-10000A
Frequency50-400Hz
Output
Standard5A
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Amps | Relay Class | B0.1 | B0.2 | B0.5 | B0.9 | B1.8 | Rating Factor at @30°C Ambient | Secondary Winding Resistance (Ω@75°C) | Weigh |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 147-202 | 2000A | 5A | C200 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 2.0 | 0.414 | 50 Lbs |
| 147-252 | 2500A | 5A | C200 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 2.0 | 0.447 | 50 Lbs |
| 147-302 | 3000A | 5A | C200 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 2.0 | 0.495 | 50 Lbs |
| 147-402 | 4000A | 5A | C200 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 2.0 | 0.707 | 50 Lbs |
| 147-502 | 5000A | 5A | C200 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 2.0 | 0.745 | 50 Lbs |
| 147-602 | 6000A | 5A | C400 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 1.5 | 0.975 | 50 Lbs |
| 147-802 | 8000A | 5A | C400 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 1.5 | 1.970 | 50 Lbs |
| 147-103 | 10000A | 5A | C400 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 1.0 | 2.190 | 50 Lbs |
