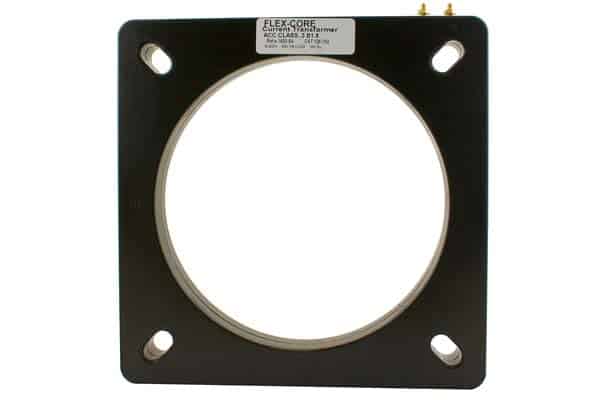

Model# 126
600V
Metering Class Current Transformer
- Mounting Brackets – P/N 0221B01529
- Terminals are Brass Studs No. 10-32 UNC
- Manufactured to meet the requirements of ANSI/IEEE C57.13
- For use with AGW series and AGH series Watt and Watt/Watt Hour Transducers.
- Ideal for use with Ammeters, Set Point Relays, Watt, Var, Current Transducers and Watt Hour Meters.
Overview
Insulation Class0.6kV, 10kV BIL Full Wave
Weight5.5 Lbs
Input
Amps0-1500 thru 0-5000A
Frequency50-400Hz
Output
Standard5A
Detailed Model Specifications
Click below to see available detailed specifications
While these tables work on mobile devices, they are best viewed on a desktop computer.
| Catalog Number | Input Amps | Output Amps | B0.1 | B0.2 | B0.5 | B0.9 | B1.8 | Secondary Winding Resistance(Ω@75°C) | @30°C | @55°C | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 126-152 | 1500A | 5A | 0.3 | 0.3 | 0.3 | 0.6 | 1.2 | 0.343 | 1.5 | 1.0 | 5.5 Lbs |
| 126-162 | 1600A | 5A | 0.3 | 0.3 | 0.3 | 0.6 | 1.2 | 0.462 | 1.5 | 1.0 | 5.5 Lbs |
| 126-202 | 2000A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.578 | 1.33 | 1.0 | 5.5 Lbs |
| 126-252 | 2500A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.904 | 1.0 | 0.8 | 5.5 Lbs |
| 126-302 | 3000A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.722 | 1.33 | 1.0 | 5.5 Lbs |
| 126-322 | 3200A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.770 | 1.33 | 1.0 | 5.5 Lbs |
| 126-352 | 3500A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.842 | 1.0 | 0.8 | 5.5 Lbs |
| 126-402 | 4000A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.962 | 1.0 | 0.8 | 5.5 Lbs |
| 126-502 | 5000A | 5A | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 1.203 | 1.0 | 0.8 | 5.5 Lbs |
